Model: ARD4

Overall Dimensions: 2095mm H × 930mm W
Wall Opening: 2105mm H × 940mm W
Custom-made sizes available

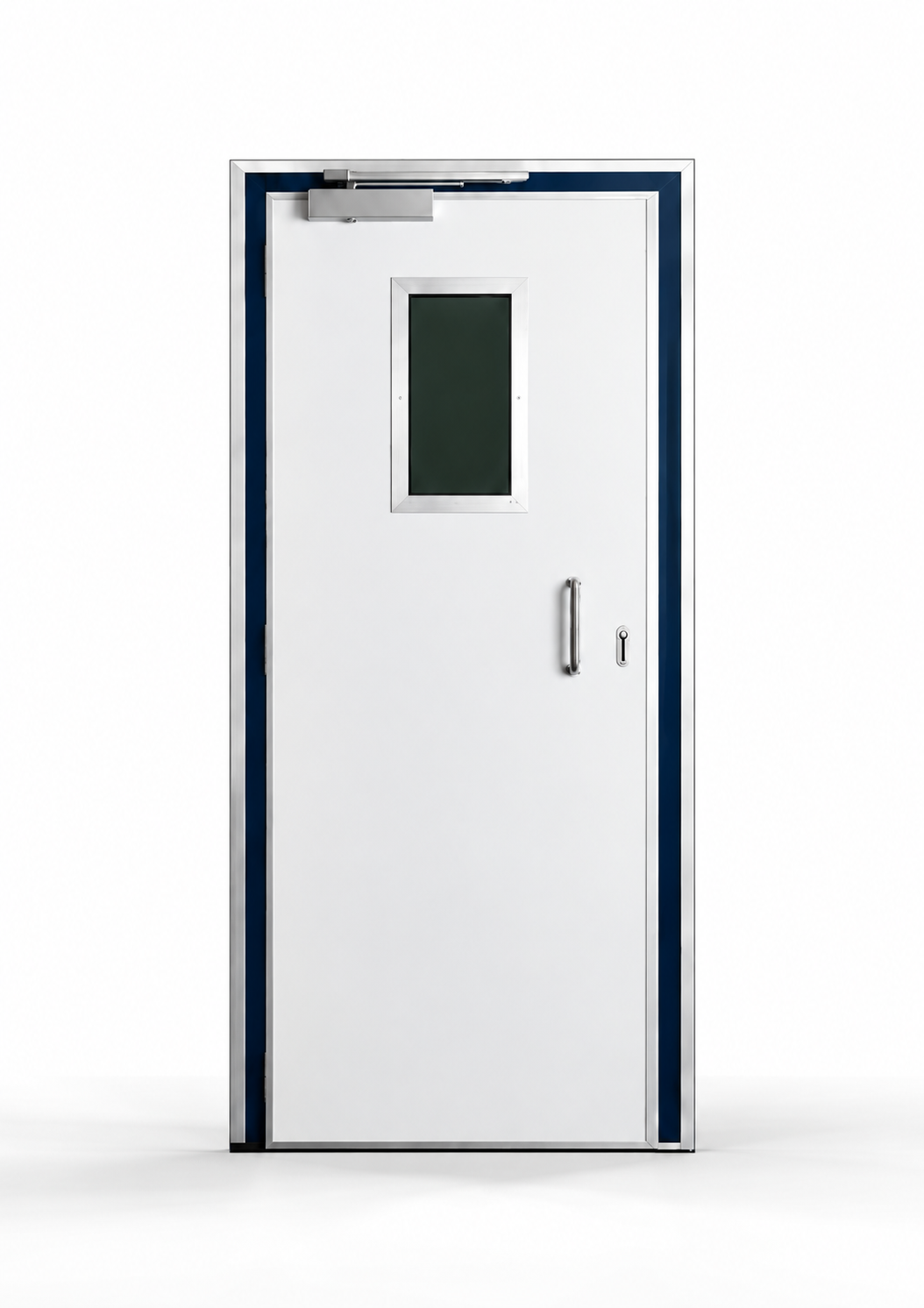

The CMI ARD4 Attack Resistant Door is purpose-built to protect people, property and assets from physical attack. Designed for high-risk environments, it is suitable for staff entrances, cash handling areas, banks and credit unions, retail and commercial premises, and government facilities.

  • Tested to withstand 2 × 3-minute continuous physical attacks
  • Attack testing focused on the locking mechanism and hinges
  • Heavy-duty steel construction
  • High-security locking systems
  • “ROTON” continuous hinges supplied as standard
  • Optional bullet-resistant view panel
  • Optional ballistic protection up to G3
  • Custom sizes and finishes available
  • Proudly designed and owned
  • 5-year warranty on the door
  • 24-month warranty on locks
  • Freight and travelling excluded from warranty

Specifications

Frame

  • 100 × 50 × 3mm rectangular tubing
  • 32 × 20mm rectangular tubing rebates
  • Rebates secured using countersunk cap screws

Door

  • Steel construction
  • Bullet Resistant Steel and Laminate High Density Chip Board finishes available
  • Steel thickness varies according to required ballistic rating

Optional Locking

  • Restricted Key
  • Dead Lock
  • Electric Strike
  • Multiple Locking Systems
  • Additional locking configurations available

View Panel – Optional

  • Standard size: 250 × 500mm
  • G1 Bullet Resistant Glass: 28mm
  • G2 Bullet Resistant Glass: 38mm
  • G3 Bullet Resistant Glass: 53mm

Ballistic Ratings

  • G1: Up to and including 9mm Parabellum
  • G2: Up to and including .357 Magnum and 12g shotgun firing buckshot
  • G3: Up to and including AK47 and 12g shotgun firing Brenneke slugs

These specifications come directly from page 2 of the supplied product sheet.

Attack Resistance

The ARD4 was tested as an Intruder Resistant (IR) Door using:

  • 10LB sledgehammer
  • 610mm wrecking bar
  • 3-minute continuous wrecking-bar attack
  • 3-minute continuous sledgehammer attack
  • Attacks directed at the lock, hinges, top and bottom of the door

The test procedure used three attackers taking turns in quick succession to maintain maximum attack force.
